A, use
Linear density (or count) for the determination of the yarn. Available skein strength test.
B, principle structure

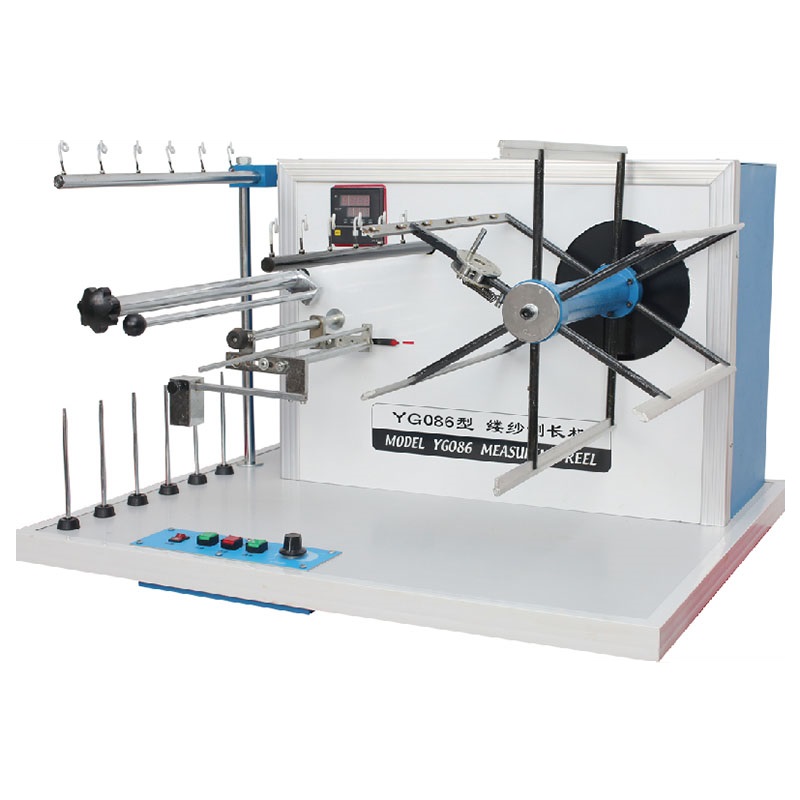

Instrument box made of yarn traverse device, tension scales, counters and other components. Yarn under the standard prescribed reeling tension control uniformly wound on yarn frame, to a preset number of windings from the stop, the yarn cabinet volume wound skein for weighing scales can be measured yarn linear density (or count).
C, Main Technical Data
1. At the same time test the bobbin: 6
2. yarn box perimeter: 1000 ± 1mm
3. Box yarn speed: 30 ~ 300 r.p.m
4. Reeling traverse back and forth width: 35mm
5. single reeling tension: 0 ~ 100cN
6. Power: 0.2KW
7.Outline size (length × width × height): 780 × 660 × 480mm
D, applicable standards
1, GB / T4743 "linear density (or count) method for measuring yarn - Skein method"
2, ISO2026 "Textiles - removed from the package in the line - the line density (weight / length) were measured - skein Law"
3, GB / T 14343 "Determination and modification of synthetic filament yarn density"
