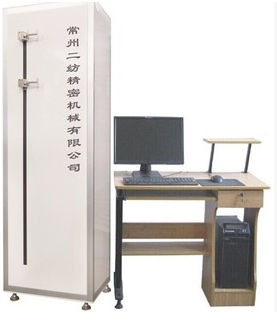

YG020 type Electronic single yarn strength tester , testing machine , Tensile machine
YG020 type Electronic single yarn strength tester , testing machine , Tensile machine

A, use:
The instrument used to measure yarn, monofilament, line, multifilament, ribbon, metal wire tensile breaking strength and breaking elongation.
B, the structure principle:
Instrument host by base cabinets, pillar, base box with electric control parts, the upper base cabinet is equipped with control panel box and put the yarn.
Main column with motor, and through the toothed belt, ball screw vice movement transmission.
, the chuck with the method of eccentric clamping, clamping is convenient, quickly under chuck in are connected to the screw nut, the movement, the equipment has simple structure and reliable, building type, beautiful appearance, making a test, just according to the need to use buttons set various test parameters test, instrument has power storage function, operation and use is very convenient, and instruments of high driving accuracy and good repeatability, and the sensor with high precision, at the same time, according to customer's specific needs can be configured PC (namely equipped with computer, the Windows operating system, high resolution color display, healthy dish, mouse and printer, make the data collection, calculation, output all automation and real-time display data and strong stretch curve).
The Main Technical Data:
1, type type: uniform elongation type (CRE)
2, the range of load test:
YG020A - 5 0 to 50 n
N YG020A - 10 0-100
YG020A 30 0-300 - n
N YG020A - 50 0-500
YG020A n - 100-0-100
3, the load value for accuracy: plus or minus 0.5%
4, the test number: pipe number x number of 300 or less
5, stretching speed: 0 ~ 1500 mm/min (stepless adjustable)
6, stretching speed precision: plus or minus 1%
7, gripper: single yarn holder
8, the clamping distance: 100 ~ 500 mm (adjusted)
9, add tension: manual and tension
10, elongation test range: 0 ~ 850 mm
11, data output mode: Chinese LCD display, breaking strength, breaking elongation, frequency and percentage elongation, etc
Print: tensile strain curve, tensile test report
12, the power supply and power consumption: 220 v + 10%, 50 hz, 0.1 kw
Applicable standards: GB/T3916 determination of the breaking strength and breaking elongation of single yarn,
ISO2062 the determination method of fracture load and breaking elongation of single yarn,
