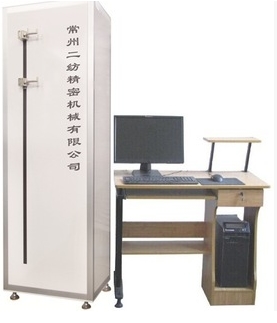

Plastic flat yarn for measuring products such as breaking strength and elongation and relevant indicators.
The device may choose to connect a computer
【Standards compliant】
GB / T 8050-2007 polypropylene monofilament or film ropes characteristics.
SNT 0769--1999 import and export inspection of high denier polyester monofilament
QB / T 2356 a high-density polyethylene monofilament and other 98
[Instrument Features]
1, measuring accuracy: the use of high-precision load cell, identified by the State Bureau of Technical Supervision.
2, the display characteristics: a graph dynamic tracking (monitoring) testing process, curvilinear coordinates automatically scale (no need to test intervention), reporting and tracking curve display simultaneously.
3, the operating software: Chinese and English automatic switching.
[Main Technical Data]
Test mode: press constant elongation (CRE) test measuring principle, the whole process is controlled by the computer instructions, and record all the time curve of the dynamic changes and breaking strength, elongation at break (elongation), time and number of times.
1. Range: 50N / 100 N / 300N / 500N / (optional)
2. Force measurement accuracy: <± 0.5%
3, the clamping distance: 50 ~ 500mm (stepless)
4, tensile speed: 20 ~ 1200mm / min (stepless adjustable)
5, the effective stroke: 1200mm
6. Extension Resolution: 0.01mm 7, the printout: breaking strength, tensile strength, elongation, elongation at break time various Form data, curves and statistics
