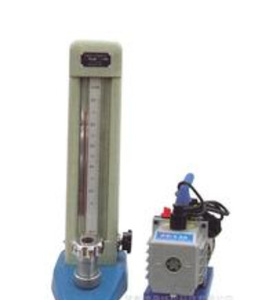

Y145A type micronaire tester
For the textile industry, research Unit of wool fiber fineness measured.
Performance in line: "GB / T11603-2006 Determination of wool fiber average Diameter airlaid"
Main Technical Data:
1, the flow meter scale range: 1.0 ~ 8.5 L / min
2, fineness measurement range: 18 ~ 40 μm
3, the specimen prescribed weight: 4.5 ± 0.01g
4, the effective volume of the sample tube: diameter Φ25mm, height 25mm
5, the pressure difference: 160 mm water column
6, the suction pump maximum flow: 3.0m³ / h
7, suction pump vacuum degree: 10pa
8, motor power: AC 220V 200W
9, the main volume: 280 × 160 × 560mm
10, Weight: about 15 Kg
