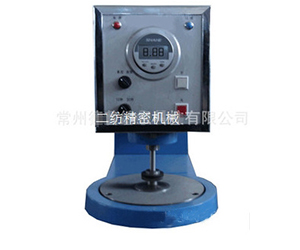

Thickness tester YG141B type Geotextile thickness gauge, Fabric thickness gauge
Thickness tester YG141B type Geotextile thickness gauge, Fabric thickness gauge

A, use
This instrument is suitable for machine and needle Fabric Fabric thickness measurement at a predetermined pressure, it can be used for other uniform thickness measurement of thin materials.
B, principle structure
This instrument is mainly digital display table, the spindle, the reference plate, Press foot with ballast blocks, lever counterweight balancing mechanism, the cam gear and servo motors etc. mounted on a casting machine base, upper part with hood closed. In operation, the sample is placed in the base plate, the base plate parallel with another round Press foot sample is applied to a predetermined pressure to the vertical distance between the two plates, as measured specimen thickness.
C, the main technical indicators
1, the thickness measuring range: 0.1 ~ 10mm
2, the minimum display value: 0.01mm
3, Press foot Area: 100, 2000, 2500, 10000mm2
4, the pressure heavy series: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500cN
5, the pressure amount of time: 10, 30 s
6, Press foot drop speed: 1.72mm / s
7, Outline size (length × width × height): 445 × 209 × 306mm
D, applicable standards
1, GB / T3820-97 "Textiles and textile products - Determination of thickness"
2, GB / T 13761.1-2009 provisions Geosynthetics thickness measured under pressure - Part 1: Determination of monolayer thickness
