A, the product uses:

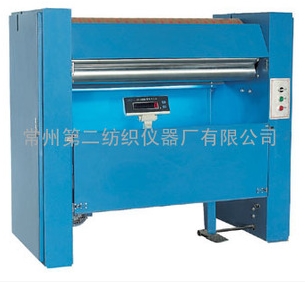

This machine is a test lap meters (or yards) situations fragment length uniformity, but the test of the actual length of the lap, lap accounting elongation.
B, main specifications:
⑴ lap roller circumference: 1 m (Y201A), 1 码 (Y201)
⑵ lap length from the stop range: 1,1 / 2,1 / 3 meters (Y201A) .1,1 / 2,1 / 3 码 (Y201)
⑶ lap electronics Maximum weighing: 5000 g (Y201A), 24 盎司 (Y201)
⑷ lap Electronics said minimum instruction weighing: 1 g (Y201A), 1/5 ounce (Y201)
⑸ lap tray length: 1040 mm
⑹ Transmission: single motor drives
⑺Outline size: 665 × 1400 × 1490 mm
C, technical features:
⑴ lap roller speed: 2.46 m / min (Y201A); 2.69 yards / min (Y201)
⑵ automatic stop device: the use of pedal controlling the clutch reaches through the link with fixed-length from the stop requirements.
⑶ final drive gear ratio: 1:32
