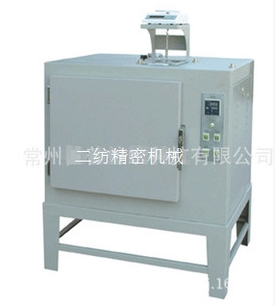

Y802 type 8-basket Constant temperature oven
The instrument used for cotton, wool, linen, silk textile raw materials and finished measuring the moisture regain and moisture content, can also be used for other materials, drying and temperature drying devices.
Structure principle
Instrument box made of metal sheet riveted or welded together, as a barrier to heat insulation material insulation, as platinum resistance temperature sensor, combined with digital temperature controller and heater for temperature control, temperature measurement, in order to make the box temperature uniformity, inside basket agencies make aluminum basket rotation, the other is equipped with a centrifugal fan, with ventilation duct, allows outside air to the inside the box, and inside the convection air flow acceleration cycle.
Instrument hot air with the principle of exchange of samples continuously by electric heating thermostat controller or not, the inside temperature reaches the thermostat to achieve the purpose of the sample at a predetermined temperature drying gradually dried, and finally box directly weighed out dry sample weight, thereby comparing the calculated and wet weight regain or moisture samples.
Main Technical Data
1, the test box size: 570 × 600 × 450mm
2, Power: 220V ± 10%, 50Hz
3 heating power: 4KW
4, aluminum basket: 8
5, the temperature control range: room temperature ~ 150 ℃
6, the temperature control precision: ± 1 ℃
7, the blower motor: 40W, 2800r / min
8, basket motor: 10W, 9r / min
9, Electronic balance: weighing 300g, feeling the weight 0.01g
Applicable Standards
1, GB / T 6102.1-2006 "Standard Test Method for raw cotton regain oven method"
2, GB / T 6500-2008 "Test Method pile fibers regain oven method"
3, GB / T 6503-2008 "Test Methods for Chemical fiber moisture regain"
