A, use:
Chemical fiber linear density for the determination of the filament (or count). Available skein strength test.

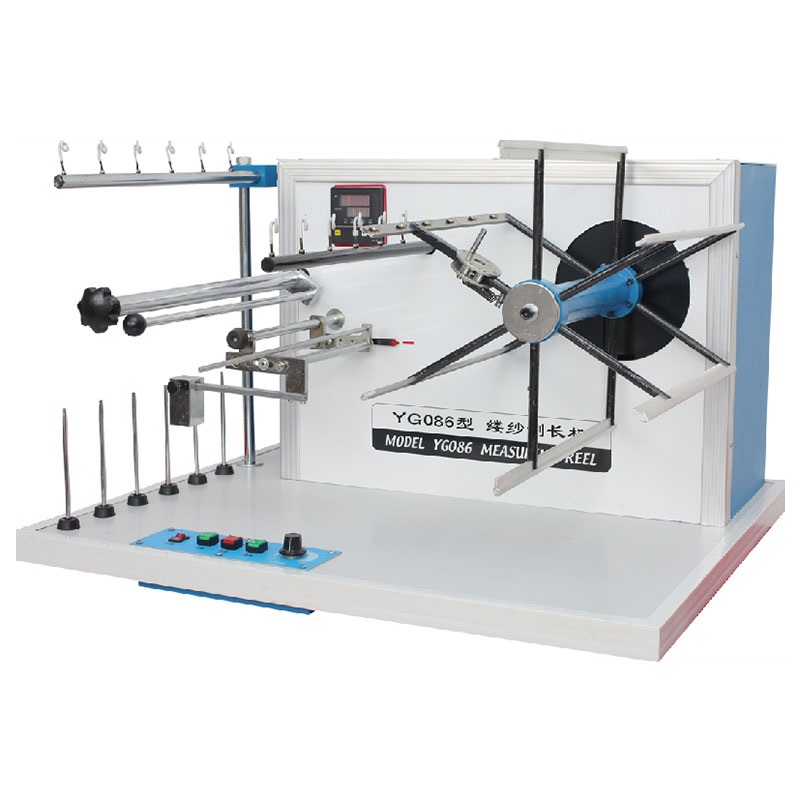

B, principle structure
Instrument box made of steel yarn, a traverse device, tension scales, counter and other components. Under the provisions of the standard yarn reeling tension control uniformly wound on yarn frame, to a preset number of windings from the stop, the yarn skein wound cabinet for weighing scales can measure the yarn linear density (or count).
C, Main Technical Data
At the same time test the bobbin: 6
Yarn box perimeter: 1000 ± 1mm
Box yarn speed: 30 ~ 300 r.p.m
Reeling traverse back and forth width: 20mm
Single reeling tension: 0 ~ 100cN
Power: 220V 0.2kw.
Outline size (length × width × height): 780 × 660 × 480mm.
D, applicable standards
1, GB / T4743 "linear density (or count) method for measuring yarn - Skein method"
2, ISO2026 "Textiles - removed from the package in the line - the line density (weight / length) were measured - skein Law"
3, GB / T 14343 "Determination and modification of synthetic filament yarn density"
