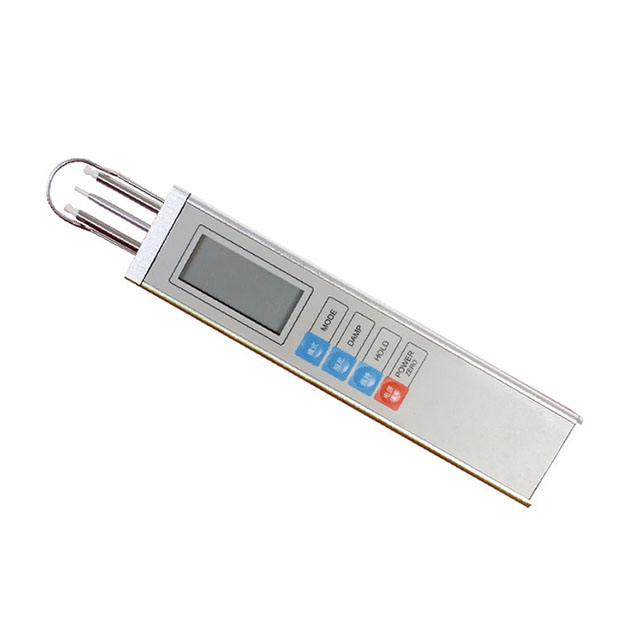

YG302 Electronic tension meter
Some application examples are as follows:
1, Chemical fiber industry: such as: textured for high-speed (6000m / min)
2, the textile industry such as: Winder
3, circular loom knitting industry precisely regulate the yarn tension
4, the optical fiber industries such as: Winder
5, metal wire industries such as: drawing and Winder
Technical Parameters
1. Accuracy: ± 1% FS or ± 1 digit
2, Unit: PCT cow (100cN = 1N)
3, Super Range of measurement: 10% FS, FS = 200cN
4: Overload: 200%
5, measuring principle: strain bridge
6, measuring wheel offset: 0.5mm
7, the signal processing: digital, 10-bit ADC
8, damping: adjustable electronic damping (3 levels), moving average
9. Sampling rate: about 1k HZ (instrument inherent frequency)
10, the display refresh rate: about 2 times / sec
11 Display: 4 LCD, 12.7mm high
12, temperature range: 10 ~ 45 ℃
13, air humidity: The maximum relative humidity of 85%
14, Auto power off: Do not use the automatic shut down after 3 minutes
15. Power supply: two AA alkaline batteries (2xAA) can be used continuously for about 50 hours
16, housing material: Aluminum frame and shell
17, the housing dimensions: 220x62x46mm (length X width x height)
18, weight, net (gross): approx. 350 g (1020 g) different tension range can be customized according to the customer's tension meter.
