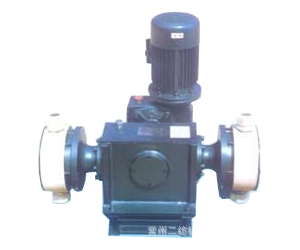

Diaphragm metering pump, with small, simple structure, high precision, low noise, no leakage, easy maintenance and other advantages. The product has been in the country to apply for a new type utility patents and design patents, patent No. ZL00240675 • 6, ZL00316806 • 6. The products are widely used in chemical, oil refining, food, medicine, electricity, environmental protection, water treatment and other industries. Quantitative transport a variety of toxic, corrosive (99% concentrated sulfuric acid) or non-corrosive variety of media, but also in the run flow metering process flow can be adjusted from 0-100%. By using a variety of industries, reflecting the good results, the majority of users.
Features:
◆ maximum flow 2000L / H, maximum pressure 1.0Mpa
◆ 316 stainless steel, ABS, PTFE pump head material mechanical eccentric drive mechanism design ◆ ◆ pump running and stopping the flow rate can be adjusted ◆ in the 10-100% flow adjustment range, accuracy of ± 1%
◆ lubricating all drive elements
| Flow / pressure gauge |
| Model |
flow
(L / H) |
pressure
(Mpa) |
Pump speed
(Min-1) |
Motor Power
(Kw) |
JJM - C - B
3000L / 0.35 |
3000 |
0.35 |
181 |
twenty two |
JJM - C - B
2650L / 0.45 |
2650 |
0.45 |
154 |
Fifteen |
JJM - C - B
2530L / 0.5 |
2530 |
0.5 |
145 |
Fifteen |
JJM - C - B
2050L / 0.5 |
2050 |
0.5 |
109 |
Fifteen |
JJM - C - B
1850L / 0.5 |
1850 |
0.5 |
100 |
Fifteen |
JJM - C - B
1700L / 0.5 |
1700 |
0.5 |
91 |
Fifteen |
JJM - C - B
1500L / 0.5 |
1500 |
0.5 |
181 |
1.1 |
|
|
Single, double head Outline size
|
| No. |
Model |
A |
B |
C |
D |
Valve Interface |
| 1 |
JJM - C - B
3000L / 0.35 |
335 |
625 |
400 |
250 |
1 ½ " |
| 2 |
JJM - C - B
2650L / 0.45 |
335 |
625 |
400 |
250 |
1 ½ " |
| 3 |
JJM - C - B
2530L / 0.5 |
335 |
625 |
400 |
250 |
1 ½ " |
| 4 |
JJM - C - B
2050L / 0.5 |
335 |
625 |
400 |
250 |
1 ½ " |
| 5 |
JJM - C - B
1850L / 0.5 |
335 |
625 |
400 |
250 |
1 ½ " |
| 6 |
JJM - C - B
1700L / 0.5 |
335 |
625 |
400 |
250 |
1 ½ " |
| 7 |
JJM - C - B
1500L / 0.5 |
335 |
575 |
400 |
250 |
1 ½ " |
|
