CT800C evenness tester is the use of computer technology and electronic technology to develop a new type Chemical fiber yarn evenness testing of the instruments. The instrument

It is used to test a variety of trunk lines Chemical fiber filament density unevenness and its characteristics, the quality of Chemical fiber filament of monitoring, tracking and improving significance, textile

Industry necessary precision Test equipment.

main feature

Main processor using industrial control computer, monitoring software based on Windows2000 platform, the whole Chinese display, easy to operate.

Maximum test speed of 800m / min, greatly improve test efficiency.

Use Mechanical twisting mode, data is more stable and reliable.

Provide value CV%, U%, maximum quality deviation test indicators.

Having a spectrogram, fine continuous spectrum, variation - a variety of graphic indicators curve length, linear density frequency distribution maps.

Statistical Analysis System provides a sample daily, monthly, quarterly, annual reports and statistical distribution of conventional indicators.

Detection extension drawer-type structure, and building type appearance, easy maintenance.

All test data reports and graphic information can be displayed on screen and printer.

Main technical specifications and parameters

Capacitive measuring groove 4

Test range 10dtex ~ 1670dtex

Traction speed 25m / min, 50m / min, 100m / min, 200m / min, 400m / min, 800m / min

Test time with 10 seconds intervals between 10s ~ 20min optional.

The coefficient of variation CV% or U% value of the test range of 0.20% ~ 100.00%

Variations - length curve cutting length 1.7cm ~ 1475m

The maximum deviation of equivalent quality cutting length 0.1 m, 1 m, 3 m, within 10 m, 100 m, inert and semi-inert optional.

Spectroscopy range 1.7 cm ~ 2935m (general spectrum 85 channels, fine spectrum 340 channels)

The figure below shows the frequency distribution of linear density within the measurement range Range of Range of measurement range and beyond the two figures.

Batch testing times ≤30

Tension adjustment continuously adjustable from 0 to 10

Twist and twisting speed S, Z two kinds of twist, twisting speed 0 ~ 40000r / min

Input supply voltage AC220V ± 10% Frequency 50Hz / 60Hz power ≤350VA

Pressure range 0.45 MPa ~ 0.6MPa

Compressed air flow 3 m3 / h ~ 5 m3 / h

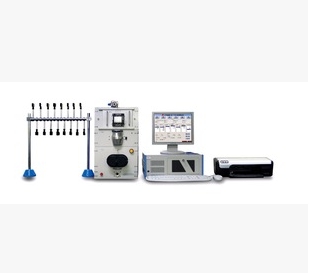

System components

Detected by extension, the main processor (including the monitor, keyboard, mouse, etc.), printers, accessories (including wire frame, silk waste recycling bins) component.
