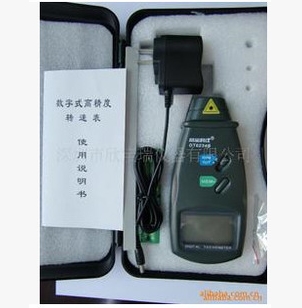

YT6236B photoelectric Contact dual-purposed rev speed/line speed meter (laser)



     For measuring the rotation within a certain time interval revolutions body, according to the average time taken as a measure of the instrument, it can be used to measure a variety of power, mechanical speed or line speed per minute. Contact and non-contact, batteries and power supply dual-use, automatically save data, extremely easy to use.

Main Technical Data:

Size: 5 large LCD backlight yellow-green display, character height 18mm

Test Range: 2.5-99999RPM (r / min)

Optical speed mode: 0.5-19999RPM (r / min)

Contacting Speed ​​mode: 0.05-1999.9m / min (m / min)

The contact wire-speed mode, resolution: Optical Speed: 0.1RPM (2.5-999.9RPM)

1RPM (1000RPM above)

Exposure speed: 0.1RPM (0.5-999.9RPM)

1RPM (1000RPM above)

The contact line speed: 0.01m / min (0.05-99.99m / min)

0.1m / min (100m / min or more)

Accuracy: ± (0.05% + 1 words)

Sampling time: 0.5 seconds (120RPM above) Range of measurement options: automatic switching

Effective distance: 50mm - 500mm

Working current: 55mA

Memory: automatic memory maximum, minimum, last measured value, automatically storing up to 96 data

Time Base: 6MHz quartz crystal

Time Base Accuracy: 10X10-6 (0 ℃ ~ 50 ℃)

Power: 4X1.5V batteries or external 6V DC power supply

PHOTO/CONTACT TACHOMETER

SURFACE SPEED METER

MODEL: DT6236B

5 digits 18mm (0.6") Yellow backlight LCD

Accuracy: ±(0.05%+1 digit)

Sampling Time: 0.5 sec(over 120RPM)

Range Select: Auto-Ranging

Memory: Max. value, Min. value,

        Last value. Can store 96s data.

Time Base: 6MHz Quartz crystal

Detecting Distance: 50~500mm

Measuring Range:

  Photo Tach: 2.5~99,999RPM

  Contact Tach: 0.5~19,999RPM

  Surface Speed: 0.05~1,999.9m/min

Resolution:

Photo Tach: 0.1RPM(2.5~999.9RPM)

          1RPM(over 1,000RPM)

Contact Tach: 0.1RPM(0.5~999.9RPM)

            1RPM(over 1,000RPM)

Surface Speed: 0.01m/min(0.05~99.99m/min)

            0.1m/min(over 100m/min)

Battery: 4x1.5V AA battery
