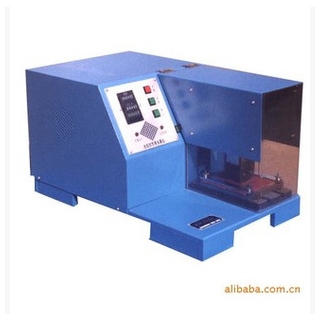

YG991-3 type Carpet dynamic load tester

   The instrument and supporting the use of thickness, can be used to damage the textile carpet under dynamic load thickness measurement. For detecting the compressibility of the carpet under a certain load, certain cycle impact effect. With a cumulative count counter, and a safety cover.

Performance in line with national standards GB. ISO 2094; BS4052.

Main Technical Data:

1, the total weight of the punch: 1279 +/- 13g

2, the size of the punch of the foot: the length / L: 51mm, width /W:6.3m, thick /T:9.5mm

3 foot distance between,: 38.1mm

4, the punch of the steel plate lifting height: 63.5mm

5, the impact frequency: 14 +/- 1n / min

6. Motor: 90TDY 60r / min

7, Outline size: L353 * W592 * H314mm

8, Power: 220V

9, Weight: 65kg
