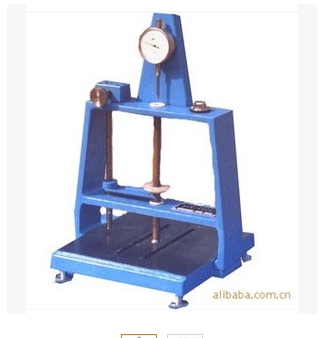

YG991-1 carpet thickness tester

          Model YG991-1 carpet thickness tester

      Used to measure the thickness of carpet and also can measure

the other kind thickness. The properties should be in conformity

with the requirement specified in GB, ISO1765 and BS4098.

Main Technical Data

    1, Form                               frame

    2, Area of sample             250*250mm

    3, Press foot

        3.1, Diameter                    22.57mm

        3.2, Area                          4sqm cm

    4, Max. intensity of pressure 220kPa

    5, Press way               special weight

    6, Range of measurement      0-50mm

    7, Accuracy                  0.01mm

    8, Outline size                 L290*W270*H475mm
