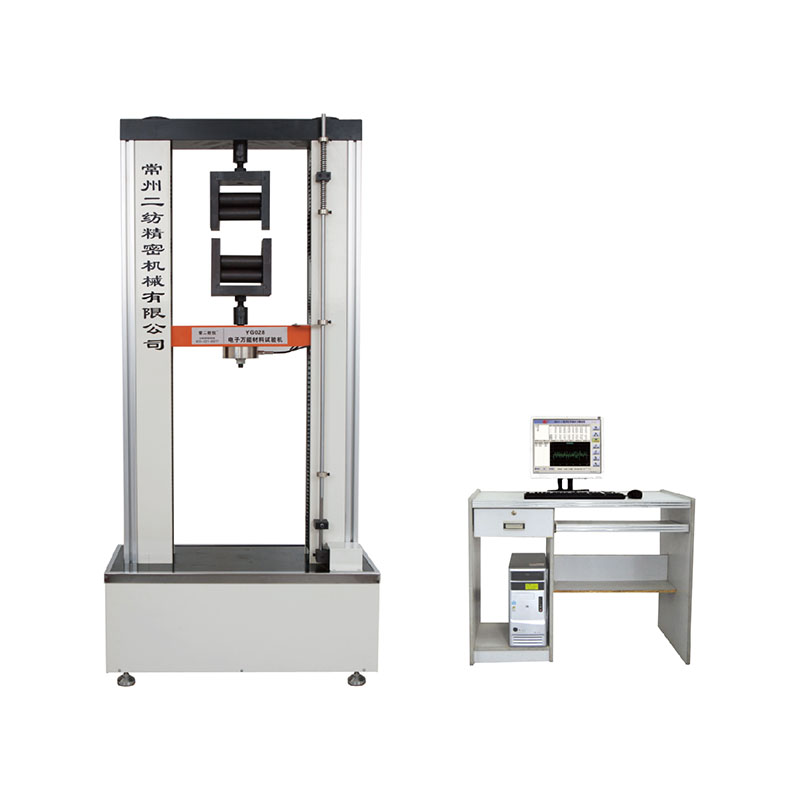

Safety harness bags test selection YG026T multi-functional tensile tester
Safety harness bags test selection YG026T multi-functional tensile tester

Scope
For measuring a variety of cotton, wool, linen, Chemical fiber, fiberglass and other machines Fabric, Nonwoven Fabric, geotextile material metal wire breaking strength and elongation at break. Also apply to Woven bag, woven monofilament, waterproof roll broken timber, fishing nets, wire and other materials strength and elongation is detected. Other special fixture can be customized according to customer requirements!
Standards compliant
GB / T 3923 GB / T 3917.2 GB / T 2792 FZ / T 70006-2004 GB / T 13773 GB / T 13772.1 GB / T 13772.2 GB / T 19976-2005 GB / T15788 GB / T13763 JTG E50-2006 GB / T16989 GB / T14800 GB / T1040 L / T235
ASTM D4595 GB / T17640, etc.
Instrument features
1, measuring accuracy: the use of high-precision load cell, identified by the State Bureau of Technical Supervision.
2, the controller: supporting Lenovo Yang-day series of computer control, standard 232 interface, powerful anti-jamming capability, fast, to ensure that the sampling rate ≥1000 times / sec; and can handle curves and reports.
3, the display characteristics: a graph dynamic tracking (monitoring) testing process, curvilinear coordinates automatically scale (no need to test intervention), reporting and tracking curve display simultaneously.
4, the operating software: in English automatically switches friendly interface.
5, the operating characteristics: the phone boot mode of operation, fool-operation features, easy to learn, stable performance.
Instrument Performance and Main Technical Data
1, the test mode: press constant elongation (CRE) test measuring principle, the whole process is controlled by the computer instructions, and record curve dynamic changes and breaking strength, elongation at break (elongation) all the time, the time, the number of etc. You can choose strength / elongation needed strength / time, elongation / time curve display.
2. Test Method: Single yarn, Fabric stretch, bursting (optional), peeling, tongue-shaped tear, trapezoidal tear, constant elongation, given strength, seam strength, seam efficiency, and other joints skid test
4, range: 10000N / 20000N / 30000N / 50000N (optional)
5. Force measurement accuracy: <± 1%
6, clip distance: 25 ~ 500mm (stepless)
7, tensile speed: 2 ~ 500mm / min (arbitrarily set)
8, the response rate: 500mm / min
9, the effective stroke: 600mm
10. Extension Resolution: 0.01mm
11, holder effective nip width: be optional
(Standard configuration: Sling special fixture)
12, Print: outputs various Form data, curve, print a report
13, power supply: AC220V ± 10% 50Hz
14, Outline size: 750 × 360 × 1680mm
15, Weight: about 300Kg
