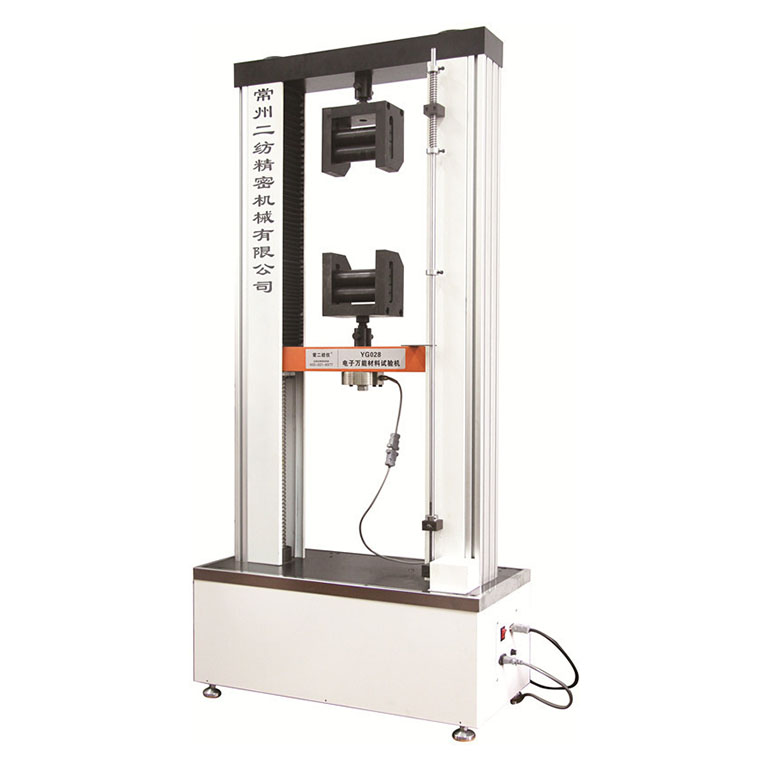

YG028A type electronic strength testing machine
YG028 type Electronic tensile testing machine for measuring machines Fabric, Geotextile Fabric etc. tensile breaking strength, elongation at break and tear strength, bursting strength, peel strength and other tests with the appropriate holder for seat belts, rope and metal and nonmetal materials tensile breaking strength, elongation, tensile strength test set. The test results can be Chinese LCD display and query, print the test report by the printer can be connected to a computer, displaying a strong elongation curve.
Performance in line
ISO5081 and GB / T3923 "Fabric breaking strength and elongation measuring"
GB / T3917 • 2 "tongue-shaped test specimens Determination of tear force"
GB / T3917 • 3 "Determination of tear force trapezoid"
GB / T19976 "Textiles ball bursting strength determination method"
GB / T13773 "Machine Fabric and strength and seam efficiency test methods for products seams"
GB / T15788 "Geotextile tensile test method wide strip method"
GB / T14800 "Geotextile bursting strength test method"
GB / T6096 "belt test methods"
GB / T15232 "woven glass fiber mat Determination of tensile strength at break"
GB / T10454-2000 <>
Technical Specifications
1, Form: constant elongation (CRE)
2, force value range: 7500N, 15000N, 30000N
3, the force value accuracy: ± 1%
4, the elongation range: 0 ~ 600mm (100mm when gripping distance), resolution of 0.01mm
5, tensile speed: 10 ~ 800mm / min
6, stretching speed accuracy: ± 2%
7, clamping distance: 20 ~ 350mm
8, the test data output: Chinese LCD (query this batch of test data and statistics)
Printer (print the test report)
9, Size (L × W × H): 740 × 610 × 1560mm
