A, use:
The instrument is suitable for intercepting circular sample a variety of textile, knitting, plastic, paper and leather materials.
B, principle structure

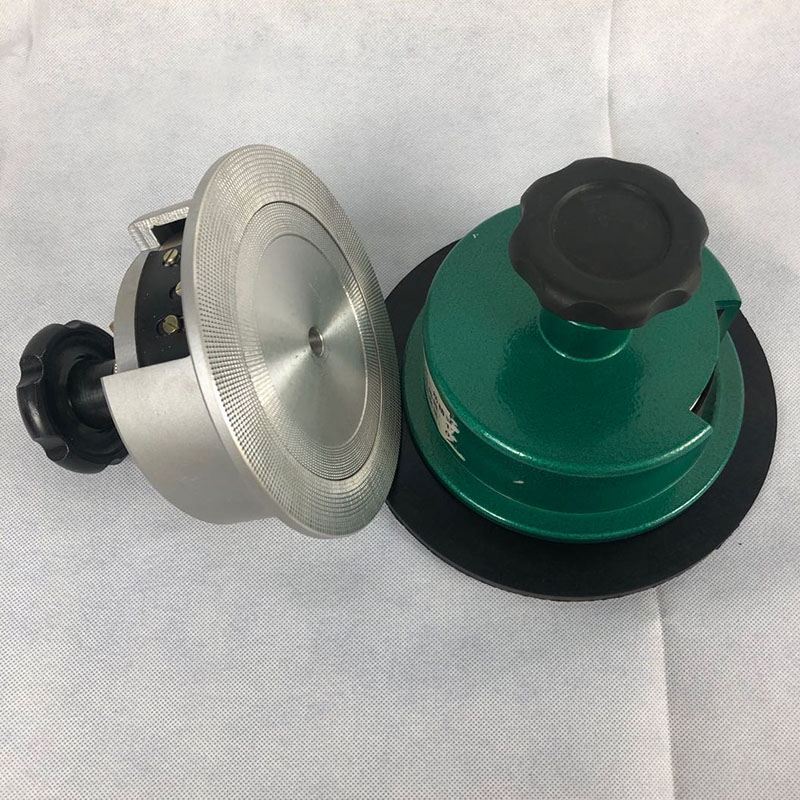

Instruments mainly by hand wheel, rotor, locating washer, pressure seat, briquetting, springs and blades and other components. Blade is mounted on the outer circumference of the rotor, is equipped with six on ZB01A type, ZB01B type equipped with four. In operation, the wait samples taken placed in rubber work surface, then the instrument is placed on the sample, hold the pressure of the seat with one hand, the other hand rotary handwheel, the rotor rotates, and the rotation of the blade will be intercepted round specimen.
The instrument aluminum alloy casting lots.
C, Main Technical Data
1, taken round specimens Area: 10000mm2
2, the hand wheel Diameter: Φ80mm
3, Outline size (Diameter × height): Φ156 × 112mm,
D, applicable standards
1, GB / T4669-95 "Machine Fabric Unit length quality and quality measurement Unit Area"
