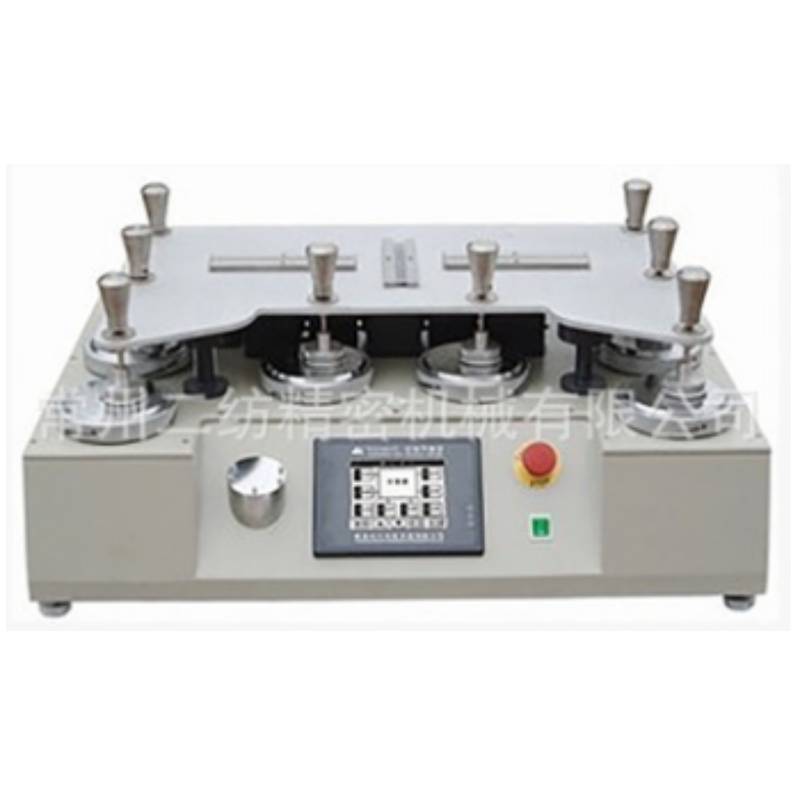

For wool and wool blended machines Fabric, Needle Fabric and Nonwovens Fabric Fabric abrasion test and for most at a certain pressure (for hair dryer Fabric more appropriate) Pilling test under slight pressure by the situation. sample and abrasive relative trajectory of Lisha Ru (Lissa-jous) graphics.
The instrument has 60 × 60mm and 24 × 24mm two kinds of Li Suoru trajectory, respectively, for abrasion test and pilling performance test.
Suitable for standard standards: GB / T4802.2; GB / T19089; FZ / T20020; ISO12945-2; ISO12947-1; ASTM D4966, ASTM D4970; IWS TM196, 112; JIS L1096.
Main Specifications:
type No.
YG401E
YG401N
YG401C
display method
LED display
LCD
LCD touch screen
Number of stations
6
6
8
Number of trials
1 to 99999
1 ~ 999999
1 ~ 999999
Pressurized weight *
A, abrasion resistance test: wear gripper assembly 200 ± 1g, clothing sample weight 395 ± 2g, upholstery sample weight 594 ± 2g.
B, pilling performance test: Pilling gripper assembly 155 ± 1g, aggravated block 260 ± 1g
The relative velocity
50 r / min
25, 50, 75 r / min
Grinding station effective Diameter Effective diameter of abrading table
φ121mm
Grinding effective friction Diameter
A, abrasion resistance test: φ28.8mm
B, pilling performance test: φ90mm
Outline size (L × W × H)
820 × 530 × 410mm
880 × 600 × 410mm
power supply
AC380V, 180W
AC220V, 180W
