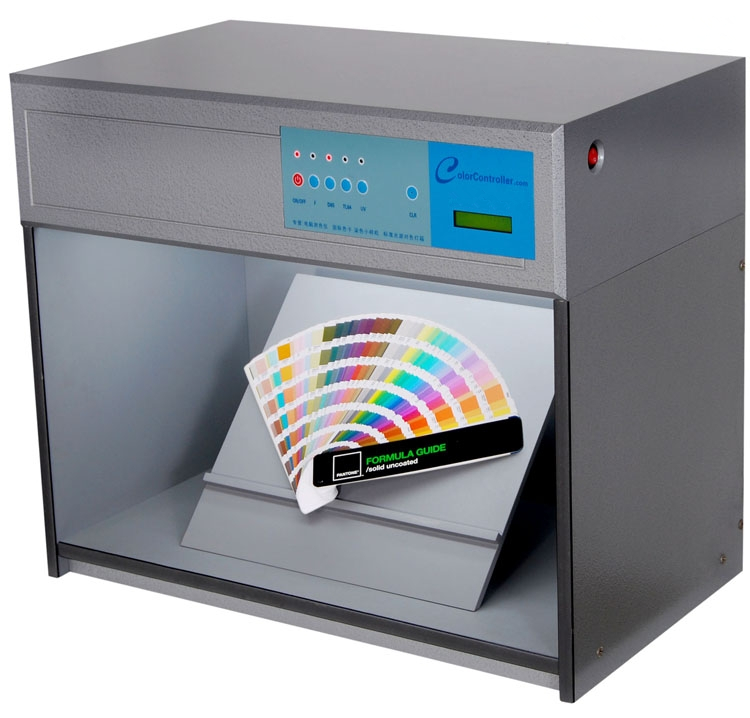

YG982D-7 type Standard light source box
Model YG982D -7Standard llluminant of Colorimetry Box
Textiles used to assess the level of color fastness, color, and color proofing. Color boxes used in all imported light. Strengthening plate housing.
Performance in line: FZ / T 01047-1997, ISO, ASTM, DIN, BSI, ANSI, CIE.
Used to measure the grade of chromatism, color fastness and printin sample with color. The properties should be in conformity with the requirment in FZ / 1047-1997. ISO, ASTM, DIN, BSI, ANSI, CIE.
Main Technical Data: Main Technical Data
1. D65 light source (PHILIPS TL`D 18W / 965) D65 Lighting:. Color Color tempertature Option 6500k CRI Color Rendering Index> 92.
2. F / A light source (PHILIPS 60W E27): the color temperature of 2700k, 2 只 Color tempertature Option2700k..
3. UV light source (GEF20T12 / BLB): UV Lighting: peak wavelength of 365nm Load Crast wave length 365nm..
4.CWF light source (GEF20W / 33): the color temperature of 4200k.
5.TL84 (PHILIPS TL`D 18W / 840) Can be equipped with TL84. Color temperature of 4000k. Color tempertature Option 4000k
6.U30 light source (PHILIPS TL`D 18W / 830):. Color temperature of 3000k 7.A American showcase light source (PHILIPS 100W E28): 2 只 color temperature 2800k Color tempertature Option2800k..
8. Weight Weight: 28kg
9. Power: Source: AC220V 50HZ
10. Outline size: Outline size: L710 × W540 × H625mm
