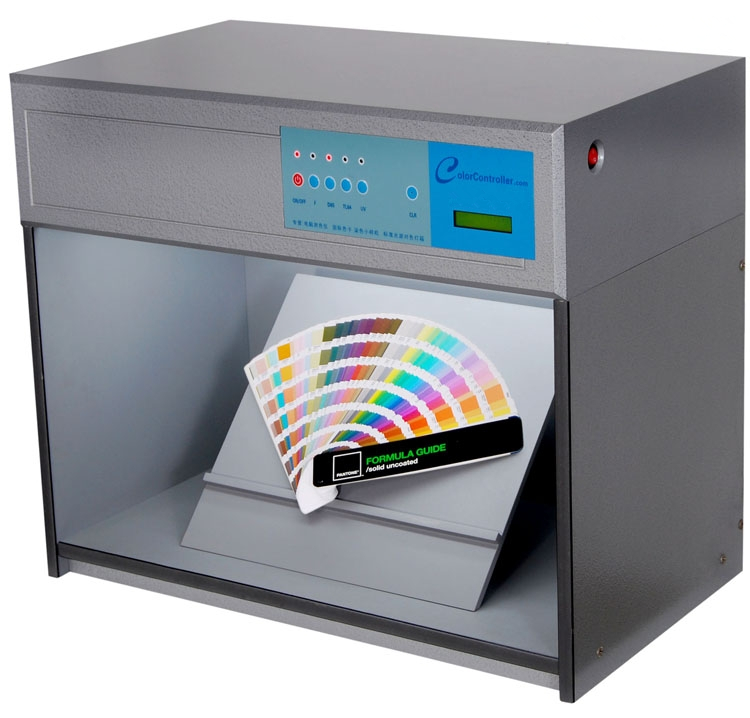

YG982D-4 type Standard light source box
Model YG982D -4Standard llluminant of Colorimetry Box
Textiles used to assess the level of color fastness, color, and color proofing. Color boxes used in all imported light. Strengthening plate housing.
Performance in line: FZ / T 01047-1997, ISO, ASTM, DIN, BSI, ANSI, CIE.
Used to measure the grade of chromatism, color fastness and printin sample with color. The properties should be in conformity with the requirment in FZ / 1047-1997. ISO, ASTM, DIN, BSI, ANSI, CIE.
Main Technical Data: Main Technical Data
1. D65 light source (PHILIPS TL`D 18W / 965) D65 Lighting:. Color Color tempertature Option 6500k CRI Color Rendering Index> 92.
2. F / A light source (PHILIPS 60W E27):. Color temperature of 2700k Color tempertature Option2700k.
3. UV light source (GEF20T12 / BLB): UV Lighting: peak wavelength of 365nm Load Crast wave length 365nm..
4. TL84 (PHILIPS TL`D 18W / 840) Can be equipped with TL84. Color temperature of 4000k. Color tempertature Option 4000k
6. Power: Source: AC220V 50HZ
7. Outline size: Outline size: L710 × W410 × H570mm
8. Weight Weight: 24kg
